符號
Code |
名
稱
Description |
尺寸
Size |
單位
Unit |

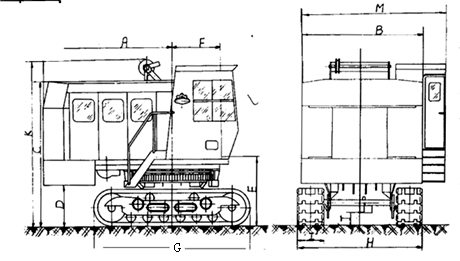

A |
機棚尾部旋轉半徑
Ridius of rear end |
3640 |
毫米
mm |
B |
機棚寬度
Wide of machinery house |
3220 |
mm |
C |
機棚頂蓋距地面高度
Height to Top of operabor's cab |
3650 |
mm |
D |
回轉平臺距地面高度
Distance from ground to bottom of turntable
|
1095 |
mm |
E |
伸臂樞紐中心距地面高度
Height from ground to boom foot pin |
1700 |
mm |
F |
伸臂樞紐中心到旋轉中心的距離
Clearance from center of rotation to boom foot
pin |
1300 |
mm |
G |
履帶長度
Over tength of crawlers |
4005 |
mm |
H |
履帶架寬度
Over width of crawlers |
3200 |
mm |
I |
履帶寬度
Wide of crawler pad |
675 |
mm |
J |
行走底架距地面高度
Ground clearance of carbody |
250 |
mm |
K |
兩足支架距地面高度
Max.height of machine |
4160 |
mm |
M |
帶司機室機棚總寬
Outline width of machine |
3522 |
mm |
